Analyze dependencies

Use Dependency mode to find every object of a given kind that is reachable from a source object. Use it to discover what depends on a resource, assess blast radius, or map impact before a change or outage.

Prerequisites​

  • You need view permission on the object kinds you want to find. Kinds you cannot view are excluded from results automatically.

Find dependencies​

  1. From the left navigation, open Object Management and select Path Traversal.
  2. Select the Dependencies tab.
  3. In Source Object, search for and select the starting object.
  4. In Target kinds, select one or more kinds of object to find — for example, InfraService or InfraDevice.
  5. Optionally, expand Search options to adjust:
    • Max Depth — maximum hops to traverse (default: 5, max: 30).
    • Max Targets — maximum distinct target objects to return (default: 50, max: 200).
    • Max Paths — maximum total paths across all targets (default: 500, max: 5000).
    • Shortest paths only — when selected (default), returns only the shortest path to each target. Clear it to return every path within the max depth.
  6. Select Find Dependencies.

Read the results​

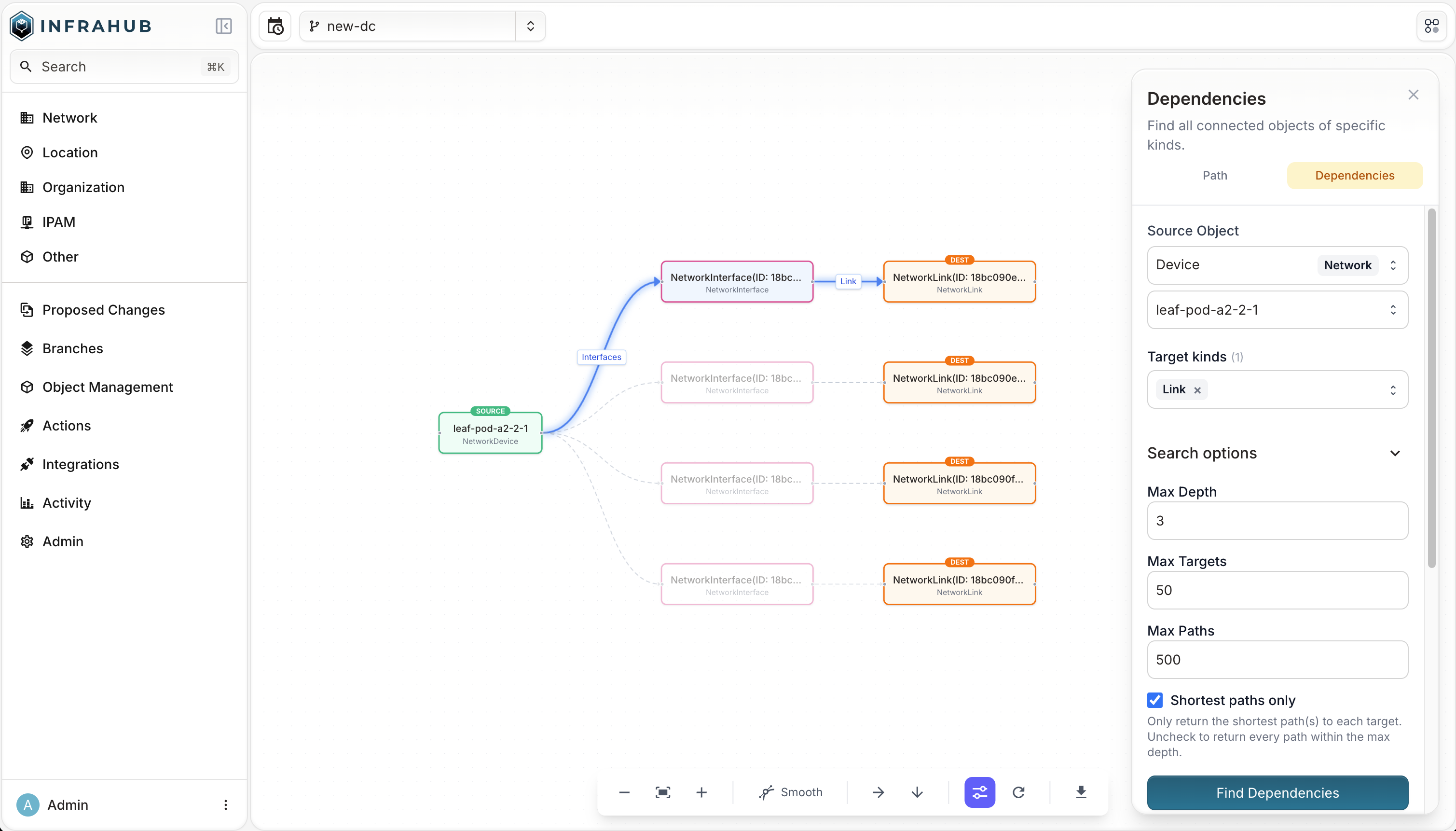

Dependency mode showing every interface with an attached link reachable from a device

The results list every reachable object of the chosen kinds, each with its depth and the path connecting it back to the source. Objects closer to the source appear first.

Select any result to highlight its path in the graph. Right-click a node in the graph to open its detail page, set it as the new source, copy its ID, or exclude its kind from the current view.

Use the toolbar at the bottom to zoom, change the layout or edge style, reload, or export the graph.

Troubleshooting​

No results — the source object may have no connections to the chosen kinds within the current max depth. Try increasing Max Depth, or verify the target kinds are connected to the source in your schema.

Query timed out — reduce Max Depth or Max Targets, or narrow to fewer target kinds.

Select at least one target kind — Dependency mode requires at least one target kind.
